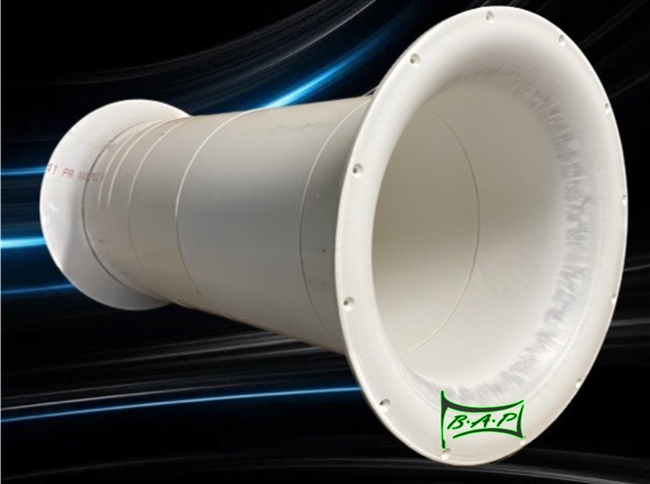

8 inch Versa-tune CLASSIC

This is the 8 inch diameter "versa-tune" adjustable length port kit. Our "versa-tune" kit is the original adjustable length flared pvc port kit that changed everything. These are COMPLETE PORT KITS that can be assembled to any length between 8 inches and 22 inches, quickly and easily, for ultimate functionality.

We recommend assembly with a high quality packaging / shipping tape in order to retain adjustability, or pvc primer and cement can be used for a permanent assembly.

This listing is for one complete port kit.

Specifications-
port I.D.- 8 3/16"
flare O.D.- 12 3/8"
mounting cutout - 11 1/4"
material wall thickness - 0.2"
port displacement - 0.0338 x length = displacement in cubic feet

8" VERSA-TUNE CLASSIC LENGTH GUIDE
===========
8" = flares only
9" = flares + 1"
10" = flares + 2"
11" = flares + 1" + 2"
12" = flares + 4"
13" = flares + 4" + 1"
14" = flares + 4" + 2"
15" = flares + 7"
16" = flares + 7" + 1"
17" = flares + 7" + 2"
18" = flares + 7" + 2" + 1"
19" = flares + 7" + 4"
20" = flares + 7" + 4" + 1"
21" = flares + 7" + 4" + 2"
22" = flares + 7" + 4" + 2" + 1"


*all ports ship raw/bare with no paint. please don't ask about paint options, we do not offer paint.
*port material color can vary at times, this is cosmetic only.
*PVC will generally have blemishes/imperfections/scratches on the outer surface of the pipe. We have absolutely no control over this. Please keep in mind that these materials are not originally intended for what we do with them, and in their intended application these blemishes/imperfections/scratches would never be visible. These surface blemishes are present before we ever take possession of the material.
*The inner surface and face of the flare (portions visible in a typical installation) will be free of the previously mentioned cosmetic issues, though smaller fine lines can be visible from the material being formed on our moulds.
*port I.D. is the size you will use for the port while calculating your enclosure.
*dimensional specifications are average. pvc can expand and contract with heat, there can also be differences in the material from the pipe manufacturer.
*please understand that our ports can vary from one port to another. this is due to inconsistency in pipe and pipe supply. We arent able to always purchase the same brands of pipe. Pipe can vary from piece to piece, brand to brand, and run to run.
